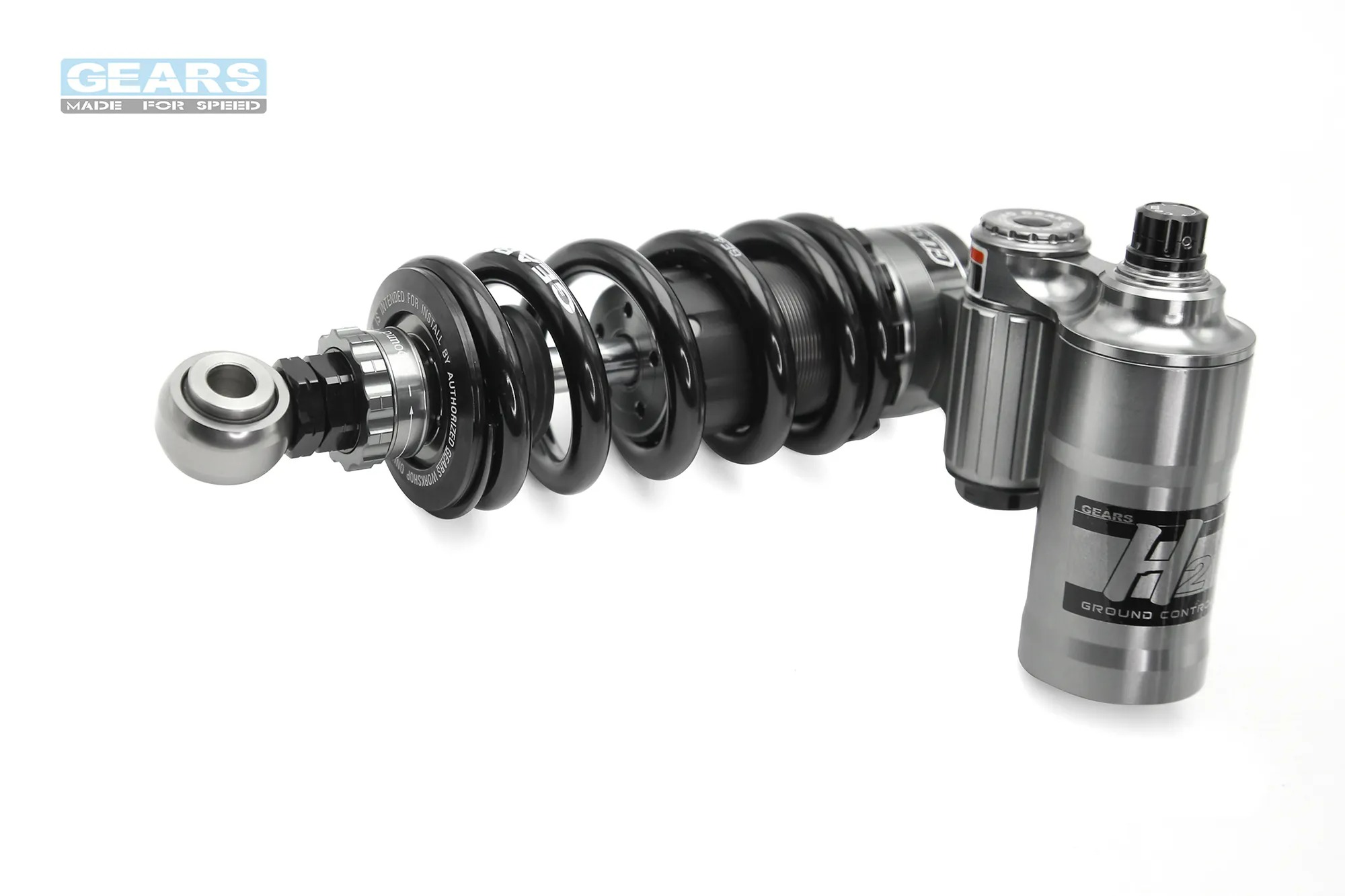

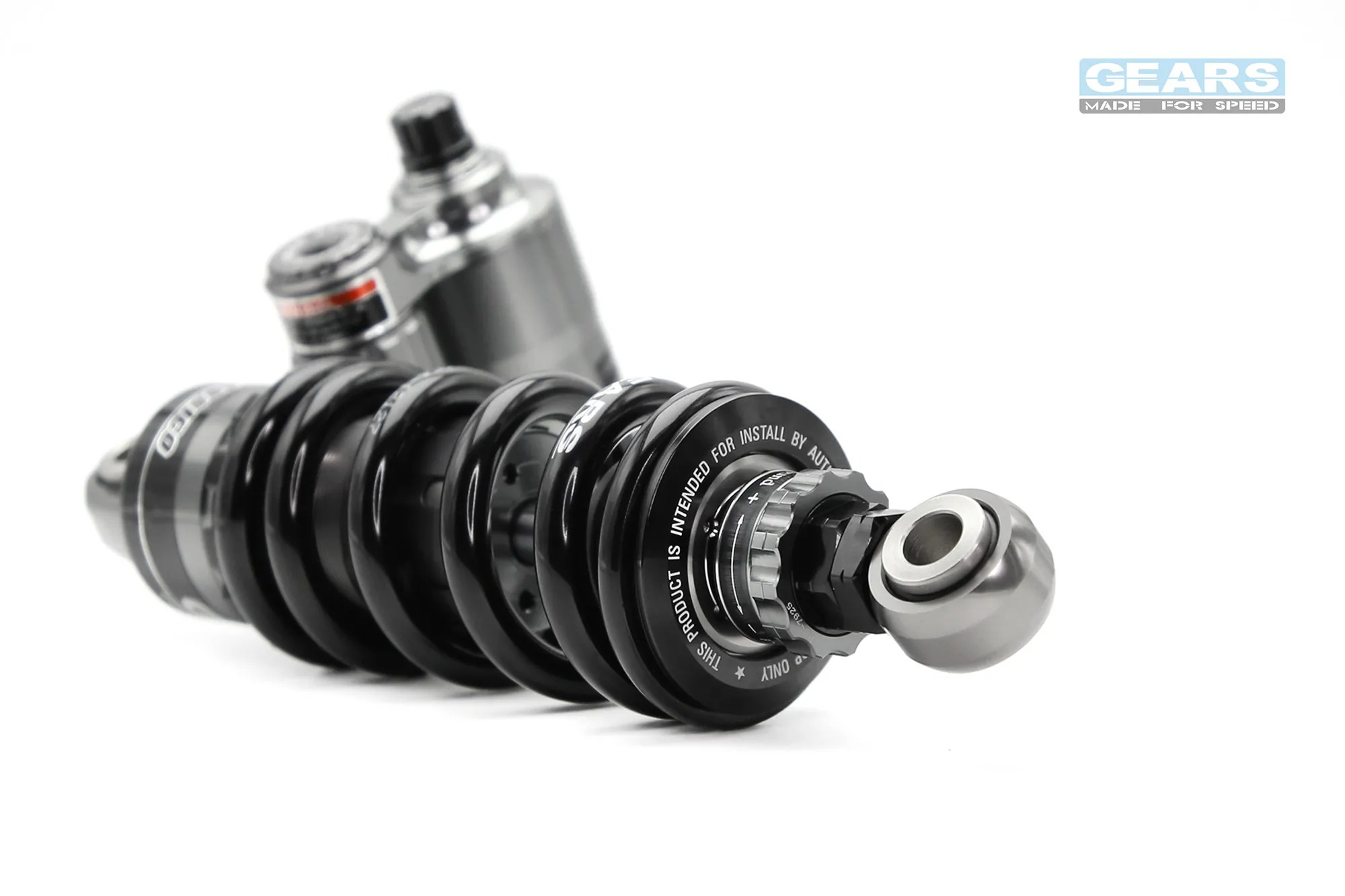

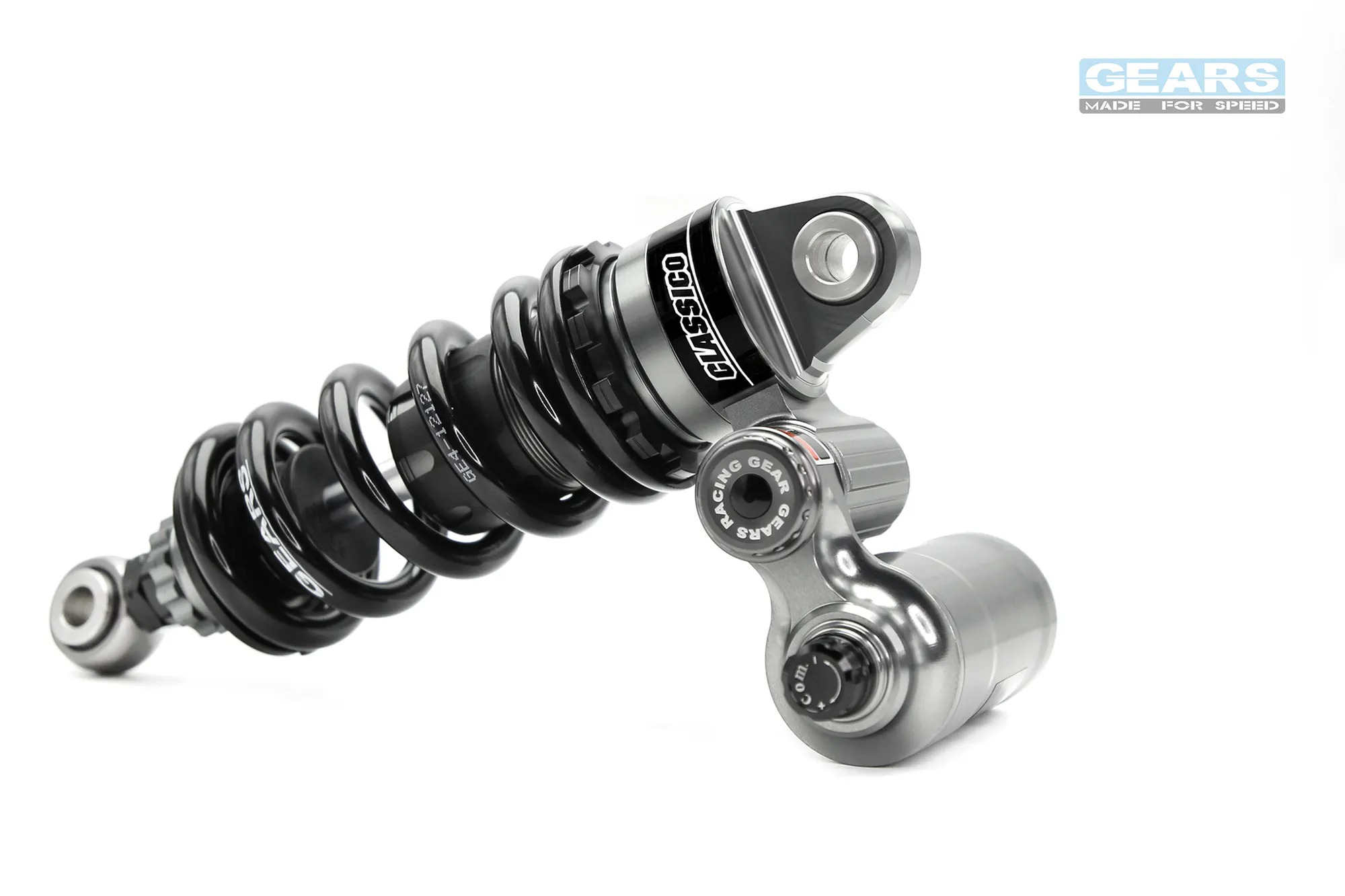

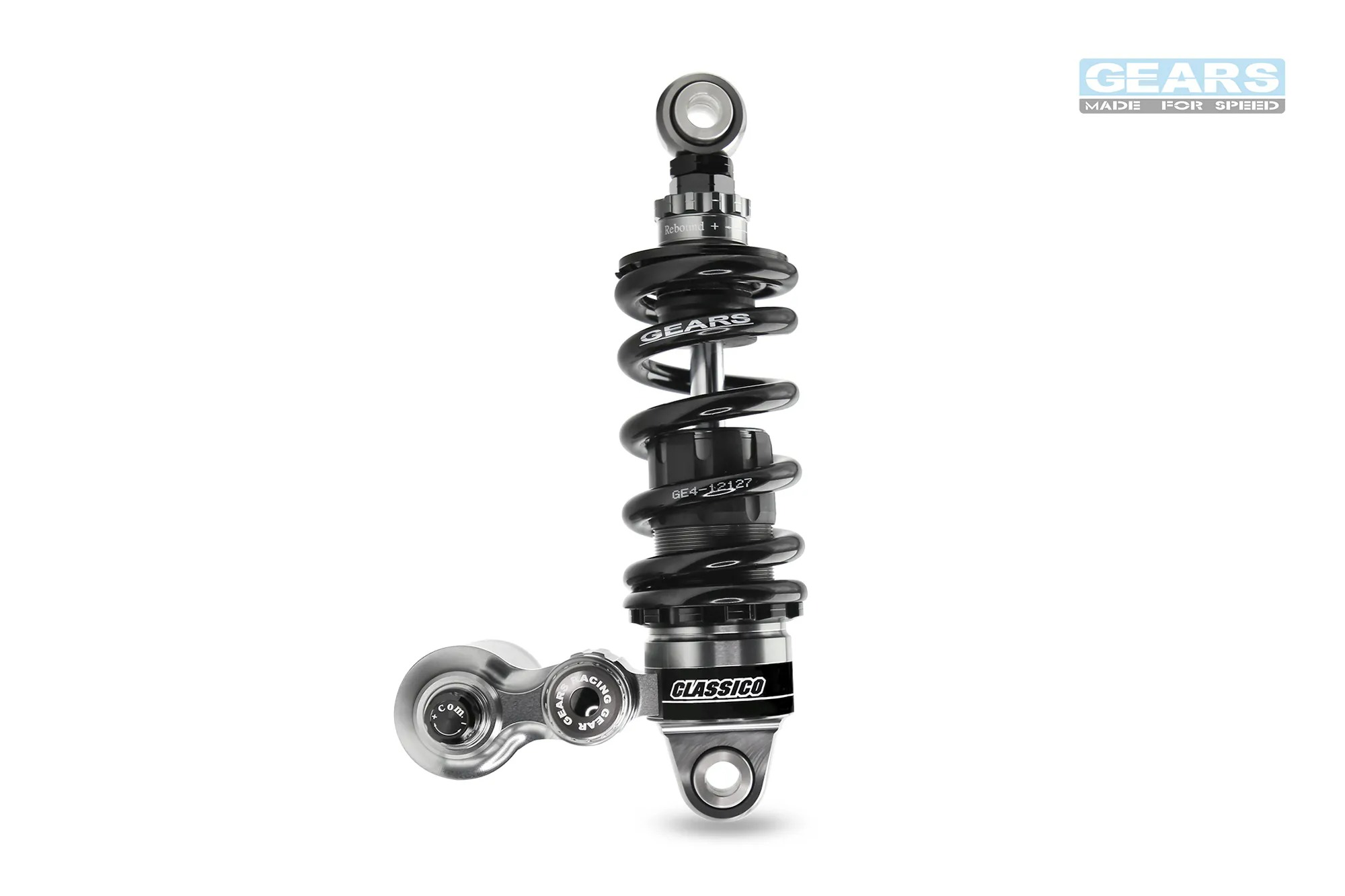

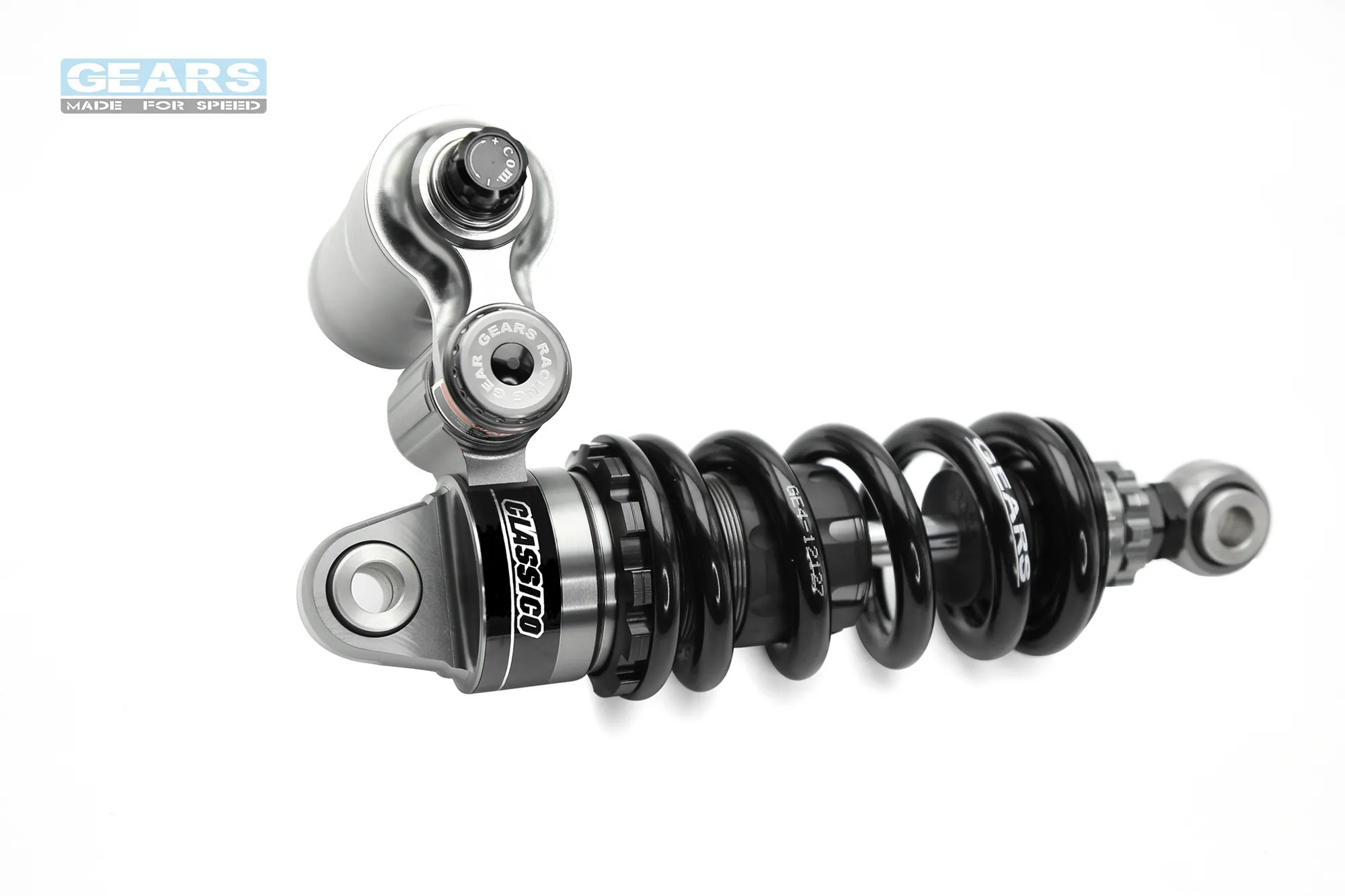

H2P Rear Suspension Z125 (16-)

☆ Product images are for illustrative purposes only; please refer to the actual product received for color. ☆

★Please provide the following personal data settings in the "Order Remarks":
Rider weight / Passenger weight / Cargo load / (Commuting or Racing) usage
If no special remarks are provided, the product will be shipped with factory settings.

. Applicable models: KAWASAKI Z125 (16-)
. Available color schemes: Standard Blue, Standard Black, Classic Blue, Classic Black, Pure Black

HILL – 2 Plus Series
Suitable for advanced mountain road riders, providing two-way adjustment for compression (downward) and rebound (rebound) damping force. The external reservoir not only provides extra oil volume to achieve better stability in damping oil temperature,
but the bottom of the reservoir also features a built-in full-size compression high/low-speed valve piston, significantly increasing the range and diversity of compression settings. It is a product designed for mid-to-high-level riders who have extreme requirements for speed and handling.

. Monotube oil-gas separation
The shock absorber adopts a monotube oil-gas separation design. The excellent heat dissipation performance of the monotube effectively lowers the operating temperature of the damping oil.
The large-diameter piston serves as the foundation for a wide-range damping force setting, and oil-gas separation protects the damping oil from foaming, which would otherwise affect the stability of the damping force.
. High-sensitivity wide-range piston
The high-sensitivity wide-range piston, combined with a smooth oil passage design and diverse torque variations of the large piston, allows the shock absorber to appropriately reduce the damping force required for simple harmonic motion during low, medium, and high-speed (wide-range) operation.
. Two-way damping force adjustment
The softness and hardness of the damping force can be adjusted according to the owner's needs. In addition to adjustable rebound damping, a full-size compression piston is built into the external reservoir to handle a high range of compression (downward) damping force adjustments.
. Adjustable spring preload + built-in air preload
Allows fine-tuning of spring preload according to the owner's vehicle usage requirements. Combined with built-in precision-calculated high-pressure inert gas to assist spring preload, it provides a wide range of simplified settings, saving time.

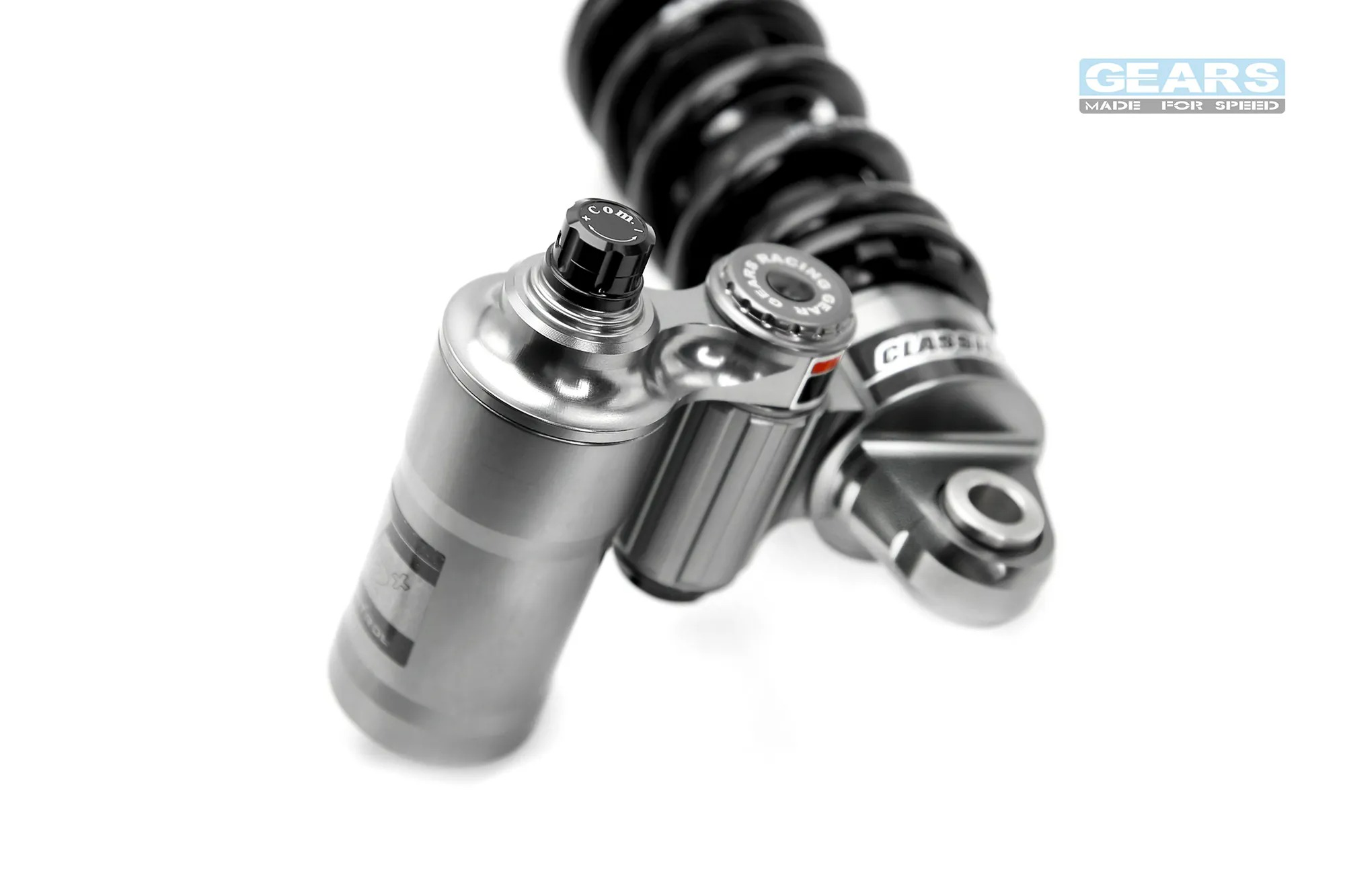

. Dual-mount horizontal reservoir system
The patented dual-mount horizontal reservoir system provides more fluid volume and more heat dissipation surface area.
. Adjustable length
For some models, the maximum length is adjustable by 5mm, providing riders the ability to adjust vehicle ride height, rake angle, and center of gravity transfer settings.
. 12-month warranty
Quality service guarantee, providing a 12-month warranty on the damping shock absorber (limited to Taiwan main island).

※The vehicle model may have different specifications in different regions and may not be compatible for installation.

※ If personal data is not provided in the order remarks, it will be shipped with factory settings.
